Kent-Moore EN48464 EN-48464 Lower Timing Gear Retainer

Kent-Moore EN48464 EN-48464 Lower Timing Gear Retainer.

This is a G.M. specific tool, check your workshop manual if this is the right tool for your application.

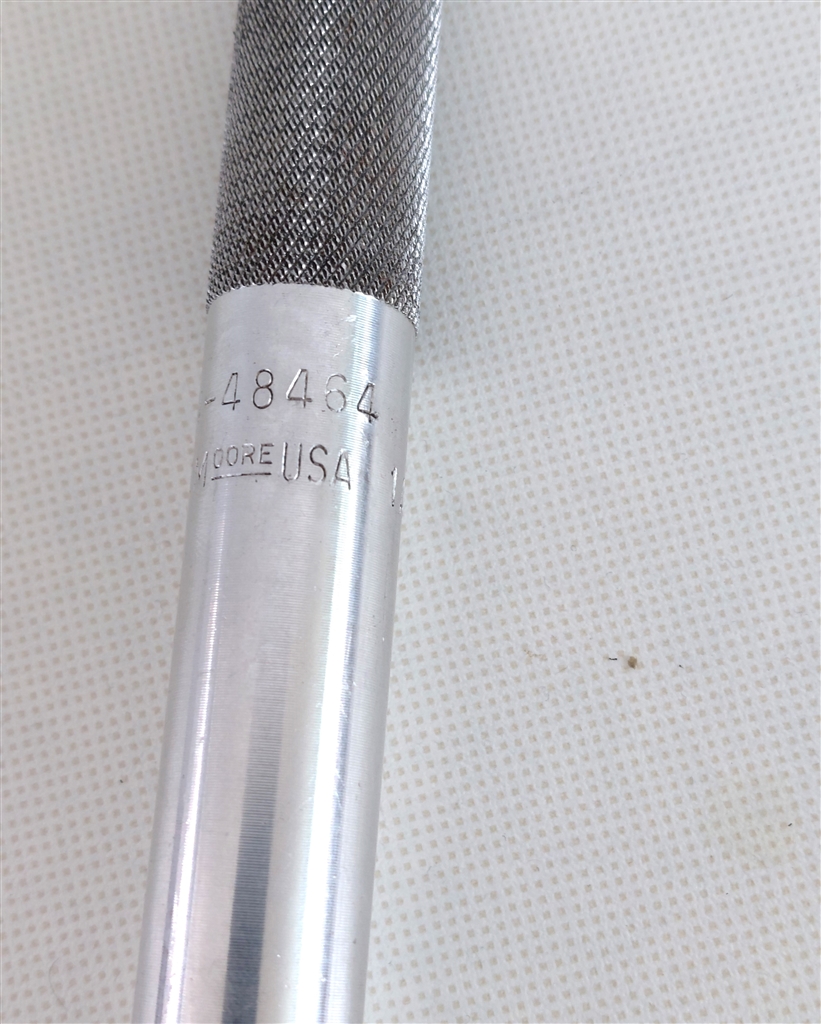

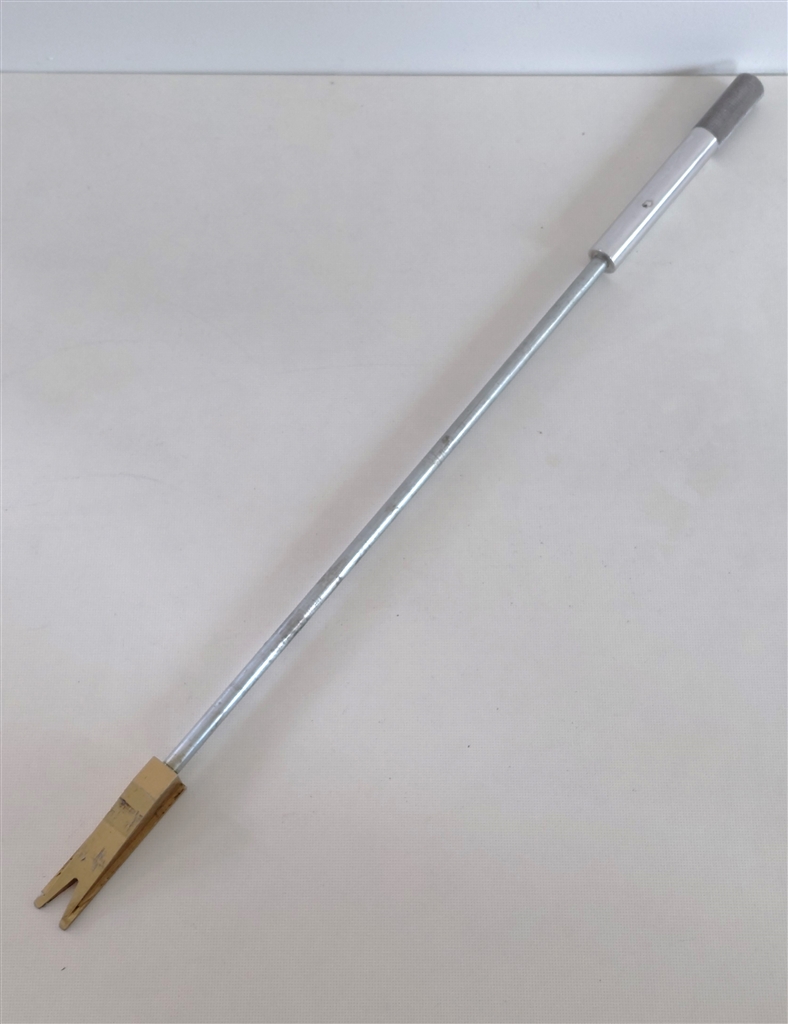

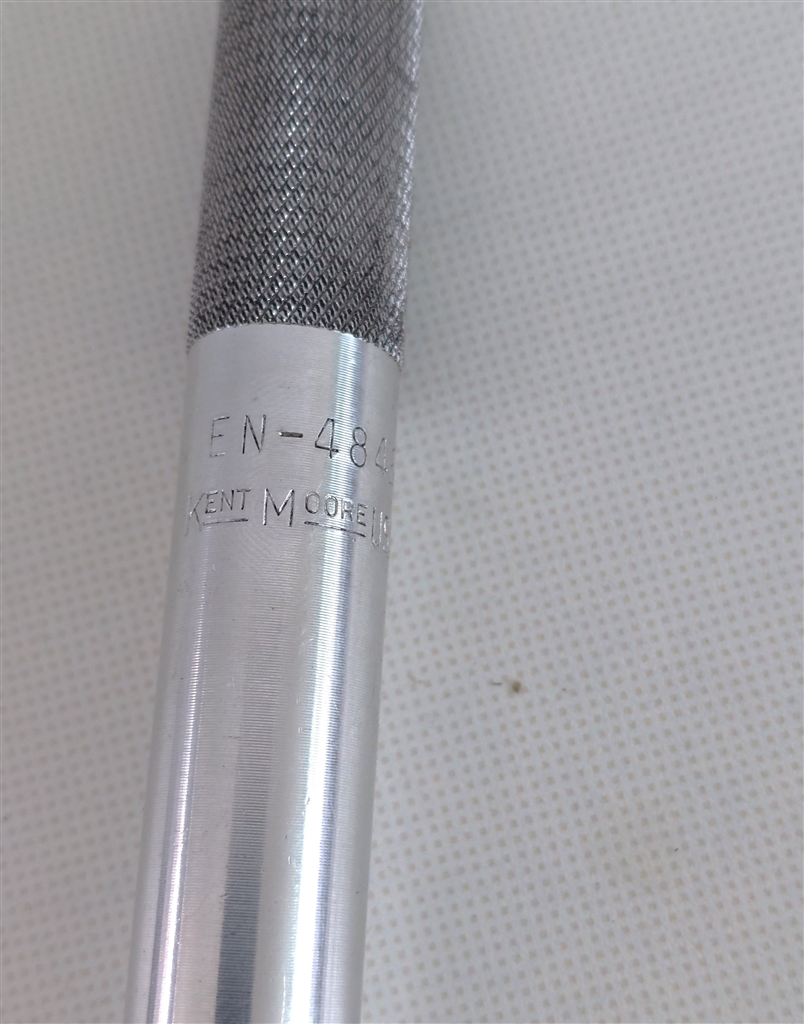

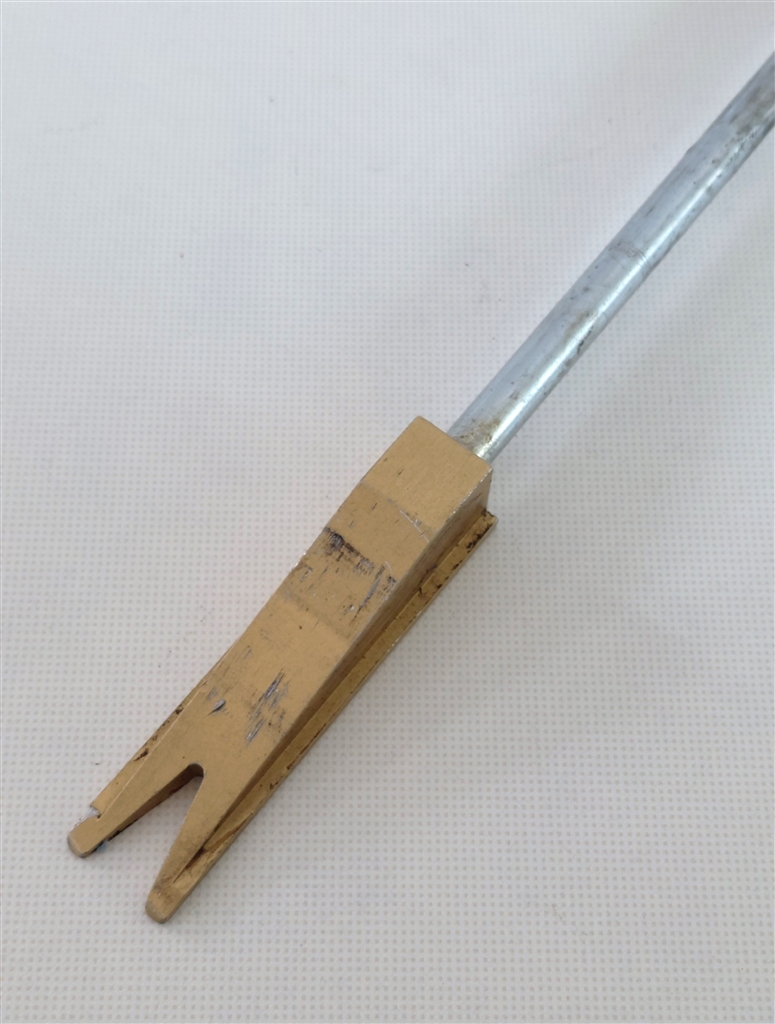

This is a used item, as shown in pictures, item is in good working order.

EN-48464 Lower Timing Gear Retainer

Used with J-44221(also on offer),  check your workshop manual if this is the right tool for your application.
Click here to go to PN J-44221

This tool is required to help keep the lower timing gear tensioner stationary while the cylinder head is removed from the I4, I5, I6 engines.
If this tool is not used it will cause the lower timing gear tensioner to extend necessitating the need to disassemble the lower part of the engine which increases the labor time by 12.8 hours for cylinder head repair.
Carefully follow the repair instructions outlined in Bulletin 06-06-01-17C to properly use the Lower Timing Gear Tensioner Holding Tool (EN-48464).
Failure to properly insert and secure the holding tool as instructed in the bulletin may result in a ratchet out movement of the timing chain tensioner and the need to perform additional repair steps not covered by the warranty repair time.

Applications:
Buick Rainier 4.2L 2004-2007
Chevy Colorado 2.8L & 3.5L 2004-2006
Chevy Colorado 2.9L & 3.7L 2007-2012
Chevy Envoy (Including XL and XUV) 4.2L 2002-2006
Chevy Trailblazer 4.2L 2002-2009
GMC Canyon 2.8L & 3.5L 2004-2006
GMC Canyon 2.9L & 3.7L 2007-2012
Hummer H3 3.5L 2006
Hummer H3 3.7L 2007-2008
Isuzu Ascender 4.2L 2003-2008
Isuzu I-280 2.8L & 3.5L 2006
Isuzu I-290 2.9L & 3.7L 2007-2008
Oldsmobile Bravada 4.2L 2002-2004
Saab 9-7x 4.2L 2005-2009

Kent-Moore Automotive Division
SPX Corporation
PN EN48464
